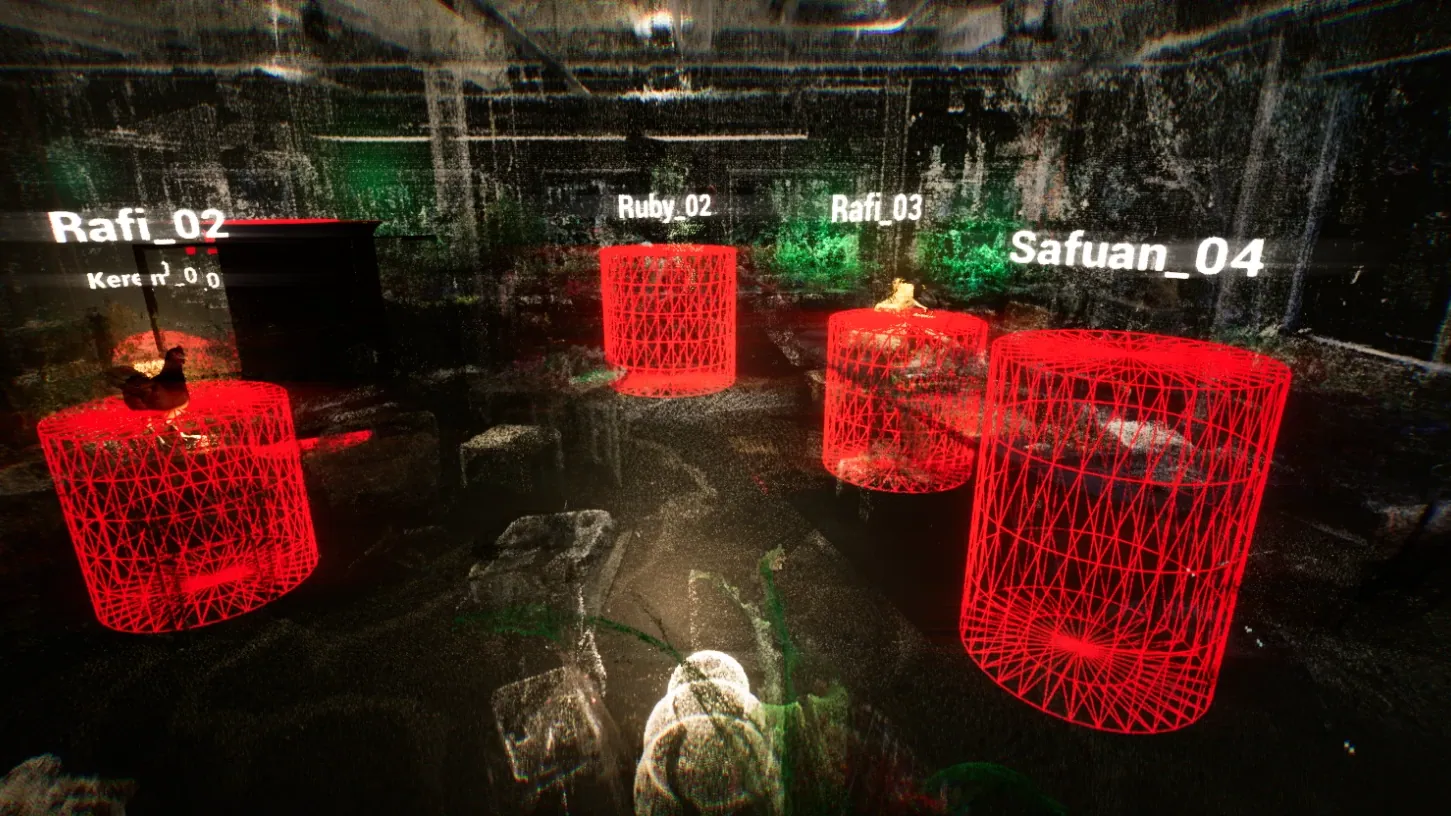

The trigger volumes with their debug names. Players don’t see these.
Modular Interaction System
Geometrica SituJanuary 2024 - February 2024
Built with Unreal Engine
Brief
Each artist in Geometrica Situ wanted a different interaction. Some played a Sequencer, some a Timeline, some audio. None of the artists used Unreal, so they would ask us whether an idea was possible and we worked out how to build it. Only two designers worked in the environment, and they needed to set up every one of these interactions the same way. Some pieces could only be seen properly from a specific angle in VR.
